#include <engine_defined.h>

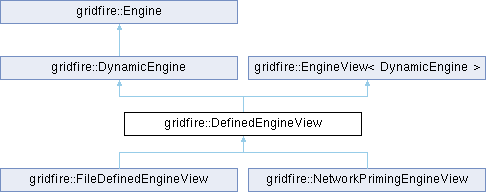

Inheritance diagram for gridfire::DefinedEngineView:

Public Member Functions
	DefinedEngineView (const std::vector< std::string > &peNames, DynamicEngine &baseEngine)

const DynamicEngine &	getBaseEngine () const override
	Access the underlying engine instance.

const std::vector< fourdst::atomic::Species > &	getNetworkSpecies () const override
	Gets the list of active species in the network defined by the file.

std::expected< StepDerivatives< double >, expectations::StaleEngineError >	calculateRHSAndEnergy (const std::vector< double > &Y_defined, const double T9, const double rho) const override
	Calculates the right-hand side (dY/dt) and energy generation for the active species.

void	generateJacobianMatrix (const std::vector< double > &Y_dynamic, const double T9, const double rho) const override
	Generates the Jacobian matrix for the active species.

double	getJacobianMatrixEntry (const int i_defined, const int j_defined) const override
	Gets an entry from the Jacobian matrix for the active species.

void	generateStoichiometryMatrix () override
	Generates the stoichiometry matrix for the active reactions and species.

int	getStoichiometryMatrixEntry (const int speciesIndex_defined, const int reactionIndex_defined) const override
	Gets an entry from the stoichiometry matrix for the active species and reactions.

double	calculateMolarReactionFlow (const reaction::Reaction &reaction, const std::vector< double > &Y_defined, const double T9, const double rho) const override
	Calculates the molar reaction flow for a given reaction in the active network.

const reaction::LogicalReactionSet &	getNetworkReactions () const override
	Gets the set of active logical reactions in the network.

void	setNetworkReactions (const reaction::LogicalReactionSet &reactions) override

std::expected< std::unordered_map< fourdst::atomic::Species, double >, expectations::StaleEngineError >	getSpeciesTimescales (const std::vector< double > &Y_defined, const double T9, const double rho) const override
	Computes timescales for all active species in the network.

std::expected< std::unordered_map< fourdst::atomic::Species, double >, expectations::StaleEngineError >	getSpeciesDestructionTimescales (const std::vector< double > &Y_defined, const double T9, const double rho) const override

fourdst::composition::Composition	update (const NetIn &netIn) override
	Updates the engine view if it is marked as stale.

bool	isStale (const NetIn &netIn) override

void	setScreeningModel (screening::ScreeningType model) override
	Sets the screening model for the base engine.

screening::ScreeningType	getScreeningModel () const override
	Gets the screening model from the base engine.

int	getSpeciesIndex (const fourdst::atomic::Species &species) const override
	Get the index of a species in the network.

std::vector< double >	mapNetInToMolarAbundanceVector (const NetIn &netIn) const override
	Map a NetIn object to a vector of molar abundances.

PrimingReport	primeEngine (const NetIn &netIn) override
	Prime the engine with initial conditions.

Public Member Functions inherited from gridfire::DynamicEngine
virtual void	generateJacobianMatrix (const std::vector< double > &Y_dynamic, double T9, double rho, const SparsityPattern &sparsityPattern) const

virtual BuildDepthType	getDepth () const
	Get the depth of the network.

virtual void	rebuild (const fourdst::composition::Composition &comp, BuildDepthType depth)
	Rebuild the network with a specified depth.

Public Member Functions inherited from gridfire::Engine
virtual	~Engine ()=default
	Virtual destructor.

Public Member Functions inherited from gridfire::EngineView< DynamicEngine >
virtual	~EngineView ()=default
	Virtual destructor.

Protected Attributes
bool	m_isStale = true

DynamicEngine &	m_baseEngine

Private Member Functions
std::vector< size_t >	constructSpeciesIndexMap () const
	Constructs the species index map.

std::vector< size_t >	constructReactionIndexMap () const
	Constructs the reaction index map.

std::vector< double >	mapViewToFull (const std::vector< double > &defined) const
	Maps a vector of culled abundances to a vector of full abundances.

std::vector< double >	mapFullToView (const std::vector< double > &full) const
	Maps a vector of full abundances to a vector of culled abundances.

size_t	mapViewToFullSpeciesIndex (size_t definedSpeciesIndex) const
	Maps a culled species index to a full species index.

size_t	mapViewToFullReactionIndex (size_t definedReactionIndex) const
	Maps a culled reaction index to a full reaction index.

void	validateNetworkState () const

void	collect (const std::vector< std::string > &peNames)

Private Attributes
quill::Logger *	m_logger = fourdst::logging::LogManager::getInstance().getLogger("log")
	Active species in the defined engine.

std::vector< fourdst::atomic::Species >	m_activeSpecies
	Active reactions in the defined engine.

reaction::LogicalReactionSet	m_activeReactions
	Maps indices of active species to indices in the full network.

std::vector< size_t >	m_speciesIndexMap
	Maps indices of active reactions to indices in the full network.

std::vector< size_t >	m_reactionIndexMap

Constructor & Destructor Documentation

◆ DefinedEngineView()

gridfire::DefinedEngineView::DefinedEngineView	(	const std::vector< std::string > &	peNames,
		DynamicEngine &	baseEngine )

Member Function Documentation

◆ calculateMolarReactionFlow()

double gridfire::DefinedEngineView::calculateMolarReactionFlow	(	const reaction::Reaction &	reaction,
		const std::vector< double > &	Y_defined,
		const double	T9,
		const double	rho ) const

overridevirtual

Calculates the molar reaction flow for a given reaction in the active network.

Parameters

reaction	The reaction for which to calculate the flow.
Y_defined	Vector of current abundances for the active species.
T9	Temperature in units of 10^9 K.
rho	Density in g/cm^3.

Returns: Molar flow rate for the reaction (e.g., mol/g/s).

Exceptions

std::runtime_error If the view is stale or if the reaction is not in the active set.

Implements gridfire::DynamicEngine.

◆ calculateRHSAndEnergy()

std::expected< StepDerivatives< double >, expectations::StaleEngineError > gridfire::DefinedEngineView::calculateRHSAndEnergy	(	const std::vector< double > &	Y_defined,
		const double	T9,
		const double	rho ) const

overridevirtual

Calculates the right-hand side (dY/dt) and energy generation for the active species.

Parameters

Y_defined	A vector of abundances for the active species.
T9	The temperature in units of 10^9 K.
rho	The density in g/cm^3.

Returns: A StepDerivatives struct containing the derivatives of the active species and the nuclear energy generation rate.

Exceptions

std::runtime_error If the view is stale (i.e., update() has not been called after setNetworkFile()).

Implements gridfire::Engine.

◆ collect()

void gridfire::DefinedEngineView::collect ( const std::vector< std::string > & peNames )

private

◆ constructReactionIndexMap()

std::vector< size_t > gridfire::DefinedEngineView::constructReactionIndexMap ( ) const

private

Constructs the reaction index map.

Returns: A vector mapping defined reaction indices to full reaction indices.

This method creates a map from the indices of the active reactions to the indices of the corresponding reactions in the full network.

Exceptions

std::runtime_error If an active reaction is not found in the base engine's reaction list.

◆ constructSpeciesIndexMap()

std::vector< size_t > gridfire::DefinedEngineView::constructSpeciesIndexMap ( ) const

private

Constructs the species index map.

Returns: A vector mapping defined species indices to full species indices.

This method creates a map from the indices of the active species to the indices of the corresponding species in the full network.

Exceptions

std::runtime_error If an active species is not found in the base engine's species list.

◆ generateJacobianMatrix()

void gridfire::DefinedEngineView::generateJacobianMatrix	(	const std::vector< double > &	Y_dynamic,
		const double	T9,
		const double	rho ) const

overridevirtual

Generates the Jacobian matrix for the active species.

Parameters

Y_dynamic	A vector of abundances for the active species.
T9	The temperature in units of 10^9 K.
rho	The density in g/cm^3.

Exceptions

std::runtime_error If the view is stale.

Implements gridfire::DynamicEngine.

◆ generateStoichiometryMatrix()

void gridfire::DefinedEngineView::generateStoichiometryMatrix ( )

overridevirtual

Generates the stoichiometry matrix for the active reactions and species.

Exceptions

std::runtime_error If the view is stale.

Implements gridfire::DynamicEngine.

◆ getBaseEngine()

const DynamicEngine & gridfire::DefinedEngineView::getBaseEngine ( ) const

overridevirtual

Access the underlying engine instance.

Returns: Const reference to the underlying engine.

This method must be implemented by derived classes to provide access to the base engine. The returned reference should remain valid for the lifetime of the EngineView.

Example:

const DynamicEngine& engine = myView.getBaseEngine();

gridfire::DynamicEngine

Abstract class for engines supporting Jacobian and stoichiometry operations.

Definition engine_abstract.h:130

Implements gridfire::EngineView< DynamicEngine >.

◆ getJacobianMatrixEntry()

double gridfire::DefinedEngineView::getJacobianMatrixEntry	(	const int	i_defined,
		const int	j_defined ) const

overridevirtual

Gets an entry from the Jacobian matrix for the active species.

Parameters

i_defined	The row index (species index) in the defined matrix.
j_defined	The column index (species index) in the defined matrix.

Returns: The value of the Jacobian matrix at (i_defined, j_defined).

Exceptions

std::runtime_error	If the view is stale.
std::out_of_range	If an index is out of bounds.

Implements gridfire::DynamicEngine.

◆ getNetworkReactions()

const reaction::LogicalReactionSet & gridfire::DefinedEngineView::getNetworkReactions ( ) const

overridevirtual

Gets the set of active logical reactions in the network.

Returns: Reference to the LogicalReactionSet containing all active reactions.

Exceptions

std::runtime_error If the view is stale.

Implements gridfire::DynamicEngine.

◆ getNetworkSpecies()

const std::vector< Species > & gridfire::DefinedEngineView::getNetworkSpecies ( ) const

overridevirtual

Gets the list of active species in the network defined by the file.

Returns: A const reference to the vector of active species.

Implements gridfire::Engine.

◆ getScreeningModel()

screening::ScreeningType gridfire::DefinedEngineView::getScreeningModel ( ) const

nodiscardoverridevirtual

Gets the screening model from the base engine.

Returns: The current screening model type.

Implements gridfire::DynamicEngine.

◆ getSpeciesDestructionTimescales()

std::expected< std::unordered_map< fourdst::atomic::Species, double >, expectations::StaleEngineError > gridfire::DefinedEngineView::getSpeciesDestructionTimescales	(	const std::vector< double > &	Y_defined,
		const double	T9,
		const double	rho ) const

nodiscardoverridevirtual

Implements gridfire::DynamicEngine.

◆ getSpeciesIndex()

int gridfire::DefinedEngineView::getSpeciesIndex ( const fourdst::atomic::Species & species ) const

nodiscardoverridevirtual

Get the index of a species in the network.

Parameters

species The species to look up.

This method allows querying the index of a specific species in the engine's internal representation. It is useful for accessing species data efficiently.

Implements gridfire::DynamicEngine.

◆ getSpeciesTimescales()

std::expected< std::unordered_map< Species, double >, expectations::StaleEngineError > gridfire::DefinedEngineView::getSpeciesTimescales	(	const std::vector< double > &	Y_defined,
		const double	T9,
		const double	rho ) const

nodiscardoverridevirtual

Computes timescales for all active species in the network.

Parameters

Y_defined	Vector of current abundances for the active species.
T9	Temperature in units of 10^9 K.
rho	Density in g/cm^3.

Returns: Map from Species to their characteristic timescales (s).

Exceptions

std::runtime_error If the view is stale.

Implements gridfire::DynamicEngine.

◆ getStoichiometryMatrixEntry()

int gridfire::DefinedEngineView::getStoichiometryMatrixEntry	(	const int	speciesIndex_defined,
		const int	reactionIndex_defined ) const

overridevirtual

Gets an entry from the stoichiometry matrix for the active species and reactions.

Parameters

speciesIndex_defined	The index of the species in the defined species list.
reactionIndex_defined	The index of the reaction in the defined reaction list.

Returns: The stoichiometric coefficient for the given species and reaction.

Exceptions

std::runtime_error	If the view is stale.
std::out_of_range	If an index is out of bounds.

Implements gridfire::DynamicEngine.

◆ isStale()

bool gridfire::DefinedEngineView::isStale ( const NetIn & netIn )

overridevirtual

Implements gridfire::DynamicEngine.

◆ mapFullToView()

std::vector< double > gridfire::DefinedEngineView::mapFullToView ( const std::vector< double > & full ) const

private

Maps a vector of full abundances to a vector of culled abundances.

Parameters

full	A vector of abundances for the full network.

Returns: A vector of abundances for the active species, with the abundances of the active species copied from the full vector.

◆ mapNetInToMolarAbundanceVector()

std::vector< double > gridfire::DefinedEngineView::mapNetInToMolarAbundanceVector ( const NetIn & netIn ) const

nodiscardoverridevirtual

Map a NetIn object to a vector of molar abundances.

Parameters

netIn The input conditions for the network.

Returns: A vector of molar abundances corresponding to the species in the network.

This method converts the input conditions into a vector of molar abundances, which can be used for further calculations or diagnostics.

Implements gridfire::DynamicEngine.

◆ mapViewToFull()

std::vector< double > gridfire::DefinedEngineView::mapViewToFull ( const std::vector< double > & defined ) const

private

Maps a vector of culled abundances to a vector of full abundances.

Parameters

defined A vector of abundances for the active species.

Returns: A vector of abundances for the full network, with the abundances of the active species copied from the defined vector.

◆ mapViewToFullReactionIndex()

size_t gridfire::DefinedEngineView::mapViewToFullReactionIndex ( size_t definedReactionIndex ) const

private

Maps a culled reaction index to a full reaction index.

Parameters

definedReactionIndex The index of the reaction in the defined reaction list.

Returns: The index of the corresponding reaction in the full network.

Exceptions

std::out_of_range If the defined index is out of bounds for the reaction index map.

◆ mapViewToFullSpeciesIndex()

size_t gridfire::DefinedEngineView::mapViewToFullSpeciesIndex ( size_t definedSpeciesIndex ) const

private

Maps a culled species index to a full species index.

Parameters

definedSpeciesIndex The index of the species in the defined species list.

Returns: The index of the corresponding species in the full network.

Exceptions

std::out_of_range If the defined index is out of bounds for the species index map.

◆ primeEngine()

PrimingReport gridfire::DefinedEngineView::primeEngine ( const NetIn & netIn )

nodiscardoverridevirtual

Prime the engine with initial conditions.

Parameters

netIn The input conditions for the network.

Returns: PrimingReport containing information about the priming process.

This method is used to prepare the engine for calculations by setting up initial conditions, reactions, and species. It may involve compiling reaction rates, initializing internal data structures, and performing any necessary pre-computation.

Implements gridfire::DynamicEngine.

◆ setNetworkReactions()

void gridfire::DefinedEngineView::setNetworkReactions ( const reaction::LogicalReactionSet & reactions )

overridevirtual

Implements gridfire::DynamicEngine.

◆ setScreeningModel()

void gridfire::DefinedEngineView::setScreeningModel ( screening::ScreeningType model )

overridevirtual

Sets the screening model for the base engine.

Parameters

model The screening model to set.

Implements gridfire::DynamicEngine.

◆ update()

fourdst::composition::Composition gridfire::DefinedEngineView::update ( const NetIn & netIn )

overridevirtual

Updates the engine view if it is marked as stale.

This method checks if the view is stale (e.g., after setNetworkFile was called). If it is, it rebuilds the active network from the currently set file. The netIn parameter is not used by this implementation but is required by the interface.

Parameters

netIn The current network input (unused).

Postcondition: If the view was stale, it is rebuilt and is no longer stale.

Implements gridfire::DynamicEngine.

◆ validateNetworkState()

void gridfire::DefinedEngineView::validateNetworkState ( ) const

private

Member Data Documentation

◆ m_activeReactions

reaction::LogicalReactionSet gridfire::DefinedEngineView::m_activeReactions

private

Maps indices of active species to indices in the full network.

◆ m_activeSpecies

std::vector<fourdst::atomic::Species> gridfire::DefinedEngineView::m_activeSpecies

private

Active reactions in the defined engine.

◆ m_baseEngine

DynamicEngine& gridfire::DefinedEngineView::m_baseEngine

protected

◆ m_isStale

bool gridfire::DefinedEngineView::m_isStale = true

protected

◆ m_logger

quill::Logger* gridfire::DefinedEngineView::m_logger = fourdst::logging::LogManager::getInstance().getLogger("log")

private

Active species in the defined engine.

Logger instance for trace and debug information.

◆ m_reactionIndexMap

std::vector<size_t> gridfire::DefinedEngineView::m_reactionIndexMap

private

◆ m_speciesIndexMap

std::vector<size_t> gridfire::DefinedEngineView::m_speciesIndexMap

private

Maps indices of active reactions to indices in the full network.

The documentation for this class was generated from the following files:

src/include/gridfire/engine/views/engine_defined.h
src/lib/engine/views/engine_defined.cpp

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Constructor & Destructor Documentation

◆ DefinedEngineView()

Member Function Documentation

◆ calculateMolarReactionFlow()

◆ calculateRHSAndEnergy()

◆ collect()

◆ constructReactionIndexMap()

◆ constructSpeciesIndexMap()

◆ generateJacobianMatrix()

◆ generateStoichiometryMatrix()

◆ getBaseEngine()

◆ getJacobianMatrixEntry()

◆ getNetworkReactions()

◆ getNetworkSpecies()

◆ getScreeningModel()

◆ getSpeciesDestructionTimescales()

◆ getSpeciesIndex()

◆ getSpeciesTimescales()

◆ getStoichiometryMatrixEntry()

◆ isStale()

◆ mapFullToView()

◆ mapNetInToMolarAbundanceVector()

◆ mapViewToFull()

◆ mapViewToFullReactionIndex()

◆ mapViewToFullSpeciesIndex()

◆ primeEngine()

◆ setNetworkReactions()

◆ setScreeningModel()

◆ update()

◆ validateNetworkState()

Member Data Documentation

◆ m_activeReactions

◆ m_activeSpecies

◆ m_baseEngine

◆ m_isStale

◆ m_logger

◆ m_reactionIndexMap

◆ m_speciesIndexMap
